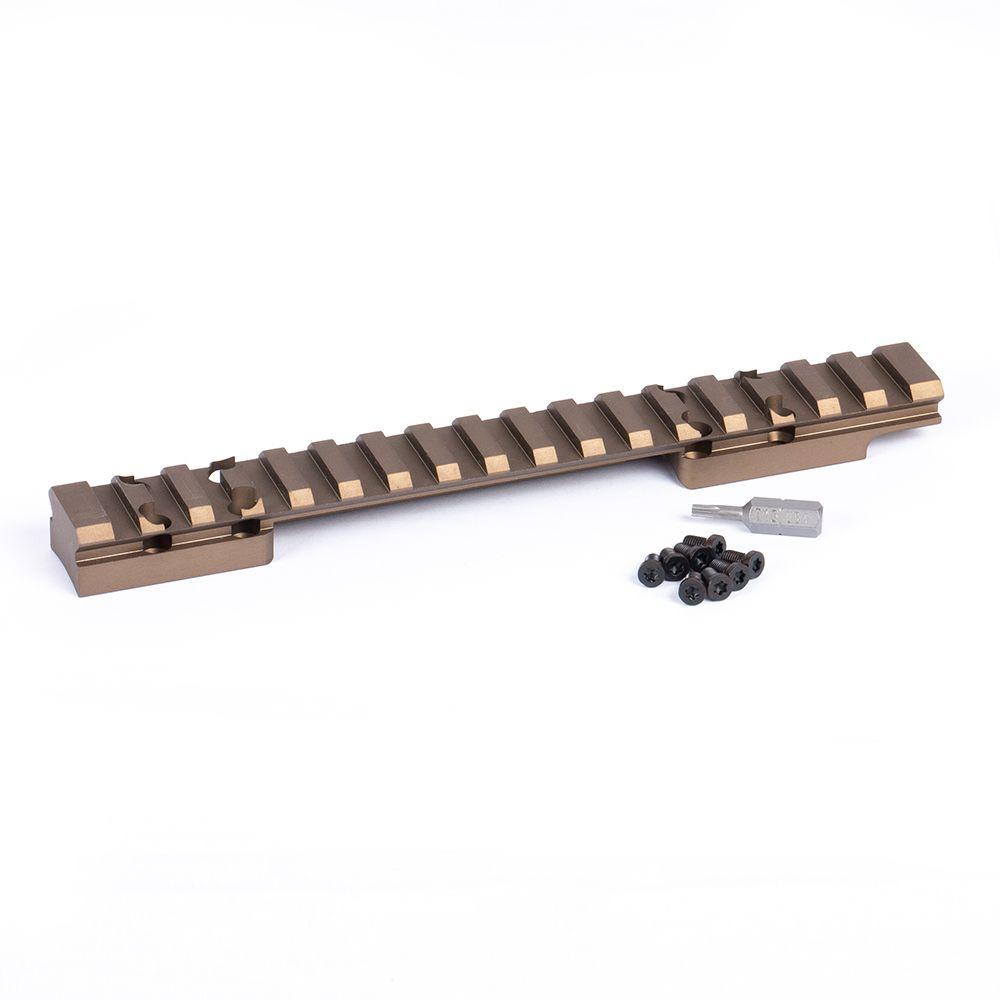

EGW HD Browning X-Bolt Long Action Picatinny Rail 0 MOA Bronze
ID: 81024-B UPC: 841370117710
View More Items by: Egw
$156.99
Mounting Hardware is Included
This mount fits:
Browning X-Bolt Long Action
This mount does not fit magnum actions including:
.300 RUM
.300 PRC
.375 H&H
Older model X-Bolts had front screw holes that were threaded to the top of the receiver. Newer models now have a deeper countersink. This countersink prevents the mounting screws from engaging multiple threads and can cause the holes to strip out in the receiver. EGW has changed the depth of the countersink on mounts made after January 2021. The date code can be found on the bottom of the mount. If the last 2 digits are 21 or higher, your mount has the deeper countersink.
Older mounts may require longer front screws. EGW recommends test fitting the screws before Loctiting to check for proper engagement. If the screws bottom out before tightening the mount, EGW recommends removing a bit of material from the screw. The front screws can be torqued to 10 in/lbs.
We STRONGLY suggest taking your gun to a qualified and competent gunsmith to have this mount installed.
Rail Type: One Piece Picatinny
Machined From: Solid 7075-T6 Aircraft Grade Aluminum
Finish: Matte Bronze Hardcoat
Center Spread: 3.692"
Overall Length of Mount: 7.075"
Height: .525" (Top of Receiver to Top of Picatinny)
Weight: 2.5 oz
Quick Disconnect Ring Compatible: Yes
Ambidextrous: No, Right Hand Only
Compatible with Picatinny or Weaver scope rings.
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
Torque Specs: 20 in/lbs
