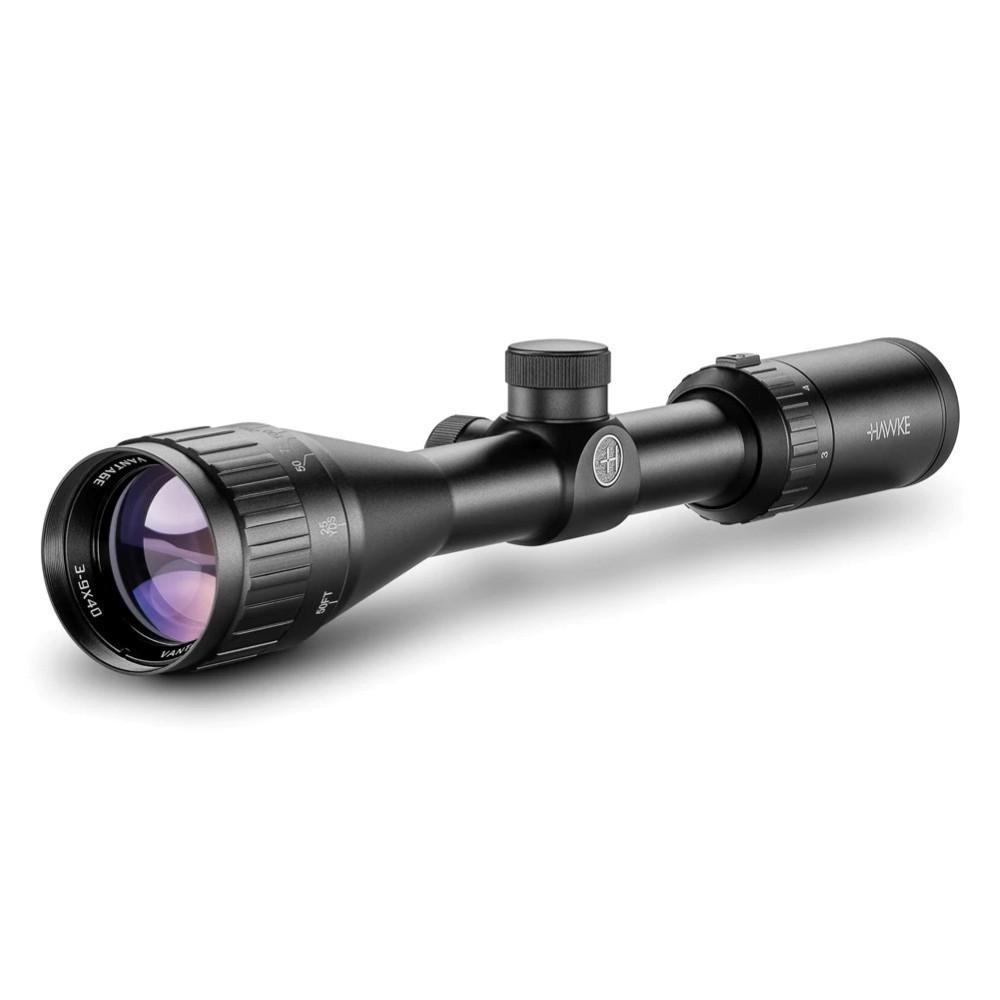

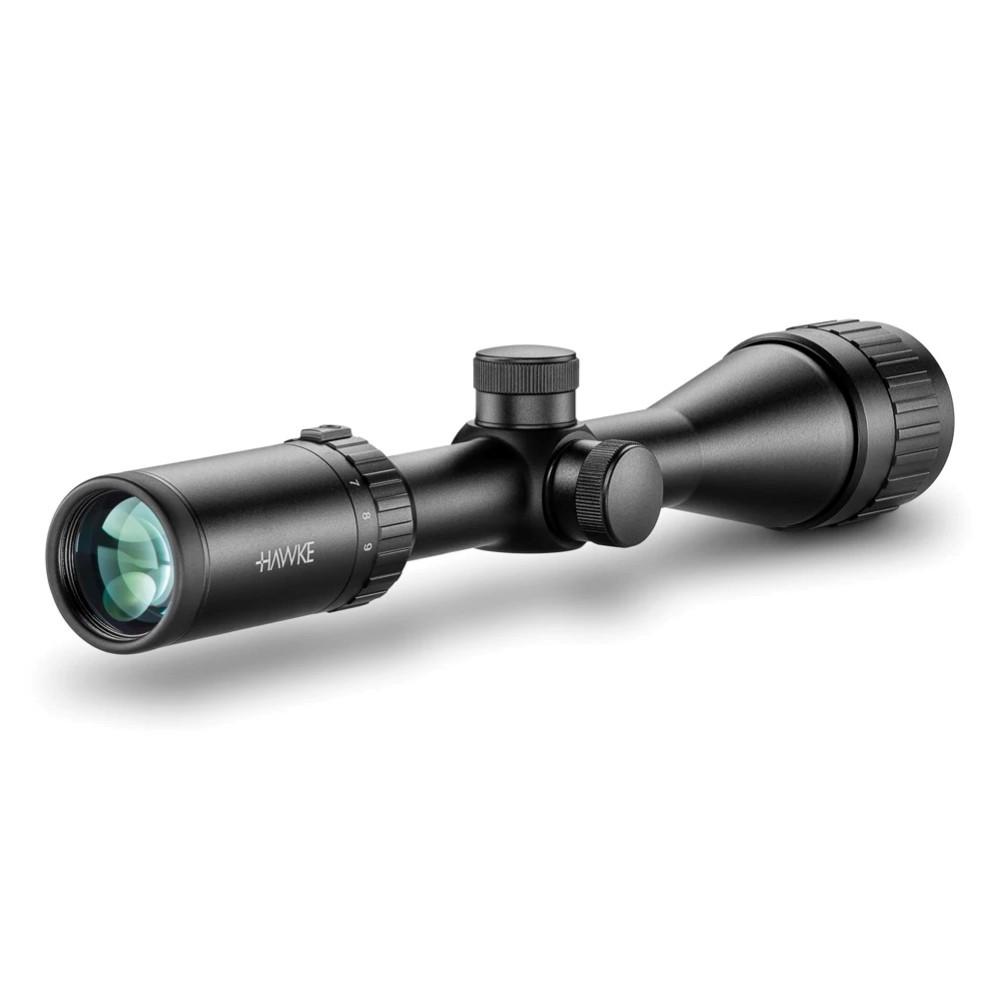

Hawke Sport Optics Vantage IR 3-9x40 Overview

Designed as a multipurpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight. The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be fog and waterproof.

Optical Performance

• 3-9x zoom range
• 40mm objective lens
• 11-layer antireflection fully multicoated optics
• 39-12.7' field of view at 100 yards

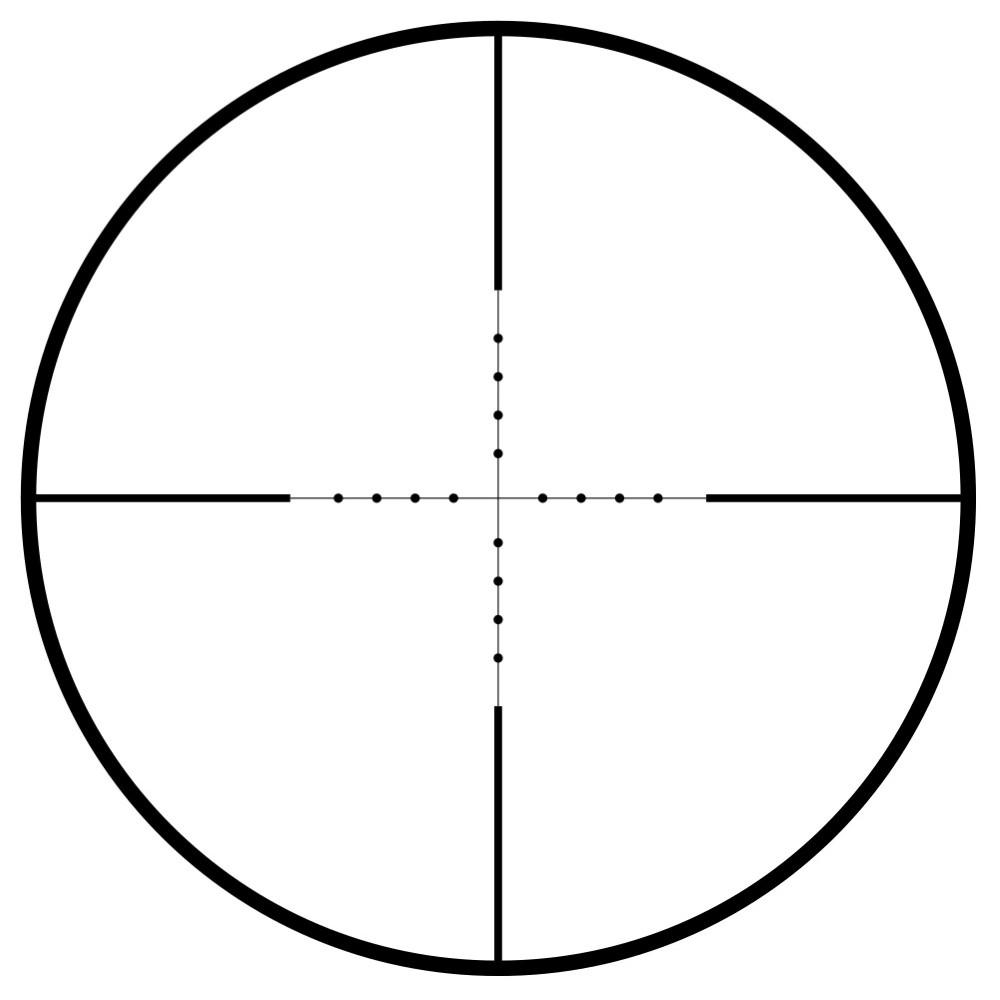

Reticle Details

• Illuminated crosshair-style reticle
  • Designed for high-velosity .22 LR caliber rounds
  • Non-illuminated crosshairs and hollow outer posts
  • Illuminated center and adjusted aiming crosses
  • Designed to be zeroed on 9x at 50 yd with all aim-points on lower vertical axis precalculated out to 200 yards
  • Sub-tensions set at 9x magnification
  • Round specifications:
    • Muzzle velocity: 1260 ft/s
    • Ballistic Coeffiecient: 0.1262
    • Scope height: 1.75" (44.5mm)
• Placed on second focal plane
• Partially illuminated:
  • Knurled Posi-Grip adjustment collar
  • Five selectable brightness levels
  • Choose between red and green colors
  • Red is ideal for low-light conditions
  • Green is easier to see in bright daylight than red
• Runs on one included CR2032 coin-cell battery

Use and Handling

• Fast-focus collar
• 1/4 MOA per click impact point correction
• 100 MOA windage and elevation adjustment range
• Parallax-free to 75 yards
• Low-profile covered turret caps prevent accidental adjustment
• 3.5" long eye relief
• 13-4mm exit pupil

Construction Details

• 1" one-piece maintube
• Lightweight and durable aluminum alloy housing
• Nitrogen-filled for fog and waterproof performance
• Rated for use on most calibers and recoil resistant
• Length: 12.7 inches
• Weight: 17.9 ounces

MPN: 14 222
Scope Tube: 1 Inch
Optical System: System H2
Magnification: 3 - 9x
Objective Lens: 40mm
Reticle: Rimfire .22 LR HV (9x)
Illumination: 5 Levels (Red & Green)
Illumination Control: Stepped Rheostat
Parallax: Fixed
Focal Plane: SFP (Second Focal Plane)
Field of View: 39 - 12.7ft @100yds | 13 - 4.2m @100m
Field of View (°): 7.4 - 2.4
Eye Relief: 3.5in | 90mm
PX/Focus (Error free from): 75yds | 69m
Exit Pupil: 0.52 - 0.17″ | 13.3 - 4.4mm
Click Value: 1⁄4 MOA
Elevation Turret Clicks (max): 100 MOA
Windage Turret Clicks (max): 100 MOA
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated - 11 Layers
Length: 12.4in | 315mm
Weight: 15.2oz | 430g
Turret Type (Elevation): Capped. Low-Profile. Resettable
Turret Type (Windage): Capped. Low-Profile. Resettable
