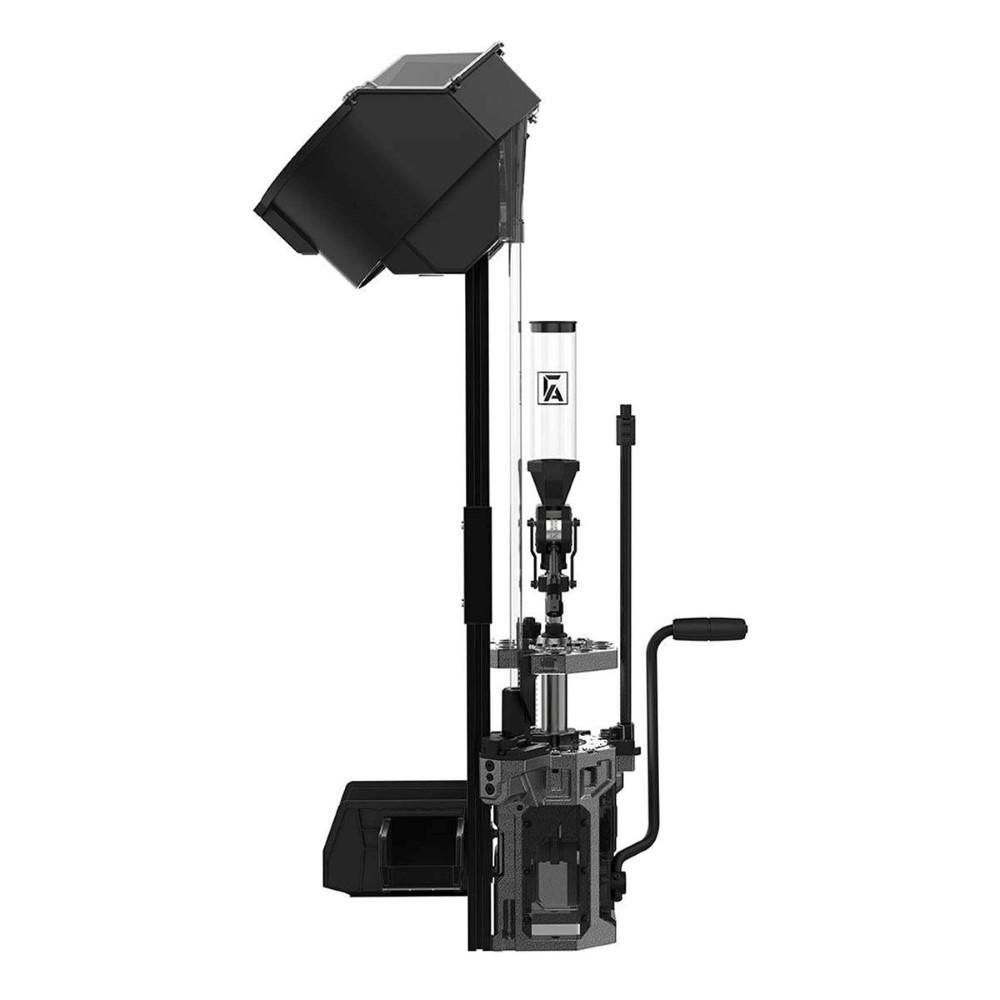

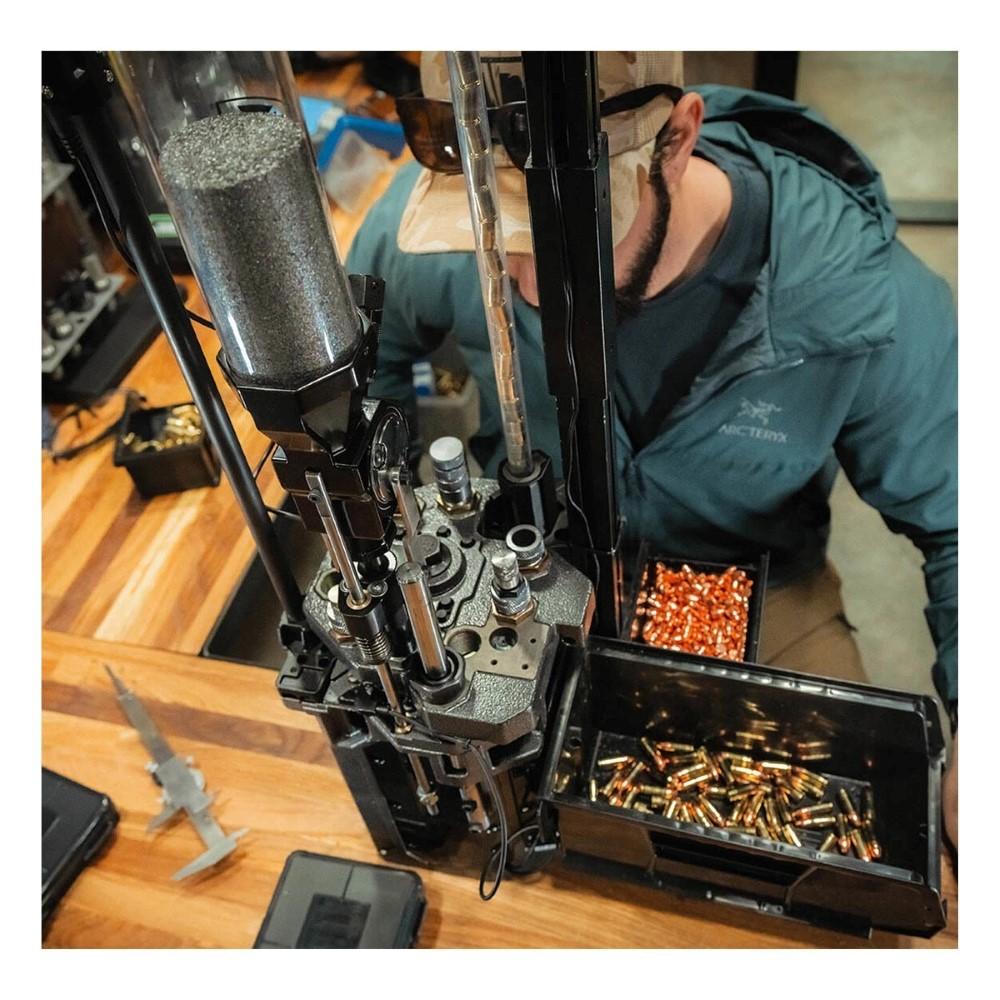

Frankford Arsenal X-10 Progressive Reloading Press with Case Feeder

Designed by reloaders for reloaders, the Frankford Arsenal X-10 is a 10 station automatic indexing reloading press purpose built from the ground up to be the ultimate progressive reloading press. At its core, the X-10 features rigid steel construction, multiple ball bearings, and a proprietary 10 station, gear driven, rotating shell plate which all combine to virtually eliminate powder spillage and bullet tipping. The X-10 offers innovative improvements like dual de-capping stations to prevent primer drawback, in-line primer pocket swaging capability (for both small and large primers), and the ability to run powder check and case trimming dies.

The X-10 includes a case actuated powder measure with a positive reset that guarantees you'll never have to worry about squib loads resulting from a sticking powder measure. When it's time to swap calibers, the X-10's innovative design allows the user the ability to quickly and easily swap out tool heads and shell plates to reload anything from 9mm to .308 length cartridges. The X-10 goes further and offers refined details like a roller handle, integrated LED light, and spring-loaded case locator buttons, which allow easy one-handed case feeding and lever operation, making the X-10 exceptionally smooth and easy to operate. Includes our Frankford Arsenal Case Feeder.The X-10 is the ultimate solution for progressive reloading.

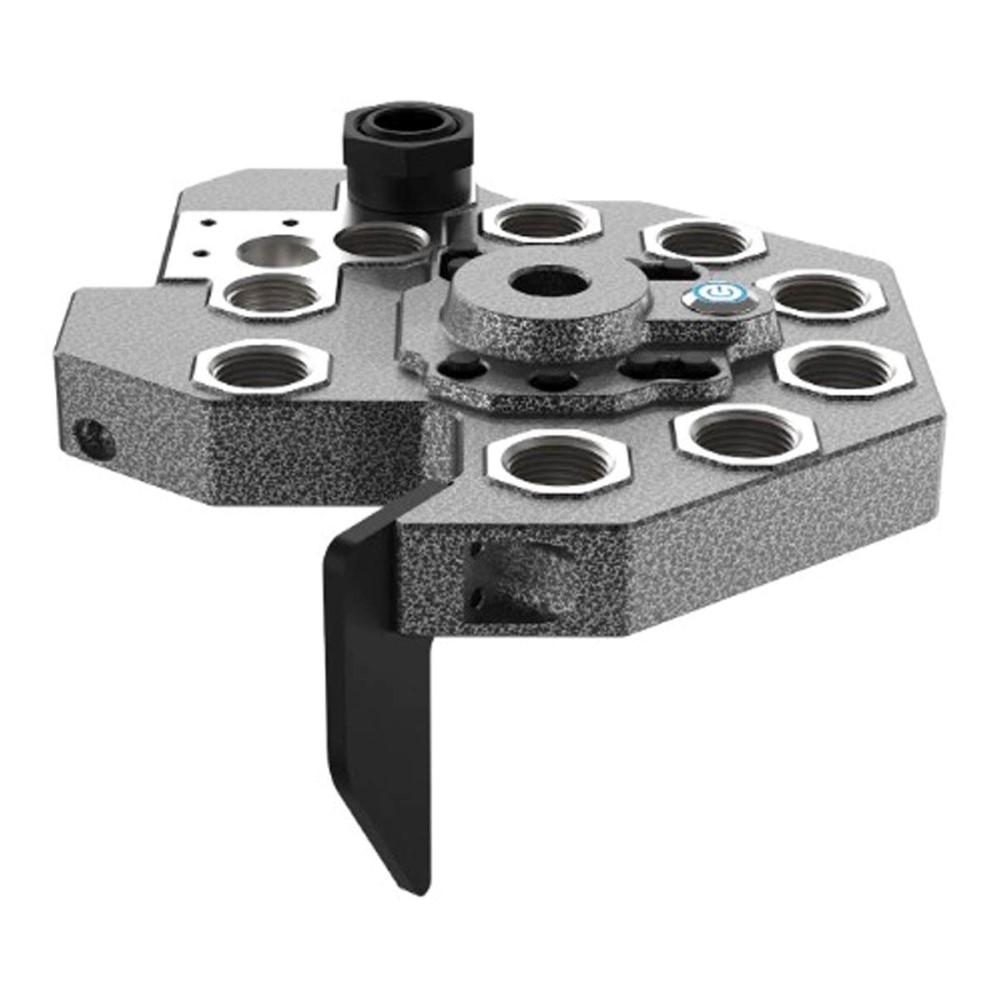

Frankford Arsenal's 10-Station design was created for maximum flexibility in die setup. Allowing single pass loading, going from fired brass to finished rounds in one step. Or running powder check dies, while still seating and crimping bullets in separate stations. On Press swaging allows for removing primer pocket crimps from military style brass in one easy step. Compatible with both small and large primers a hold down die and swage rods are included. Case feeder comes included with the X-10 progressive press for improved round output. Compatible with both pistol and rifle cases by simply switching between included case feed plates and reducers. The X-10 powder measure is loaded with features. A positive reset function prevents squib loads and a powder drum tht rides in ball bearings for smooth operation. The micrometer powder stem is adjustable from 2.5-50 grains and comes with inserts for pistol, small rifle, and large rifle. The X-10 toolhead contains LED lights for a clear visible work area. An Integrated PCB board in the tool head provides both audible and visual alarms. Dual decapping stations can be utilized in the first two stations for back-to-back de-capping operations to help prevent primer drawback common with military style crimped brass. Both de-capping stations feed into the same fully contained spent primer collection system. Designed with ball bearings throughout for ultra smooth operation. Ball bearings were implemented into the powder measure assembly, shell plates, indexing linkage, and priming & swaging assemblies.

Please Note:

• No dies are included with press (Dies are ordered separately).
• No Shellplates are included with press (Shellplates are ordered separately).

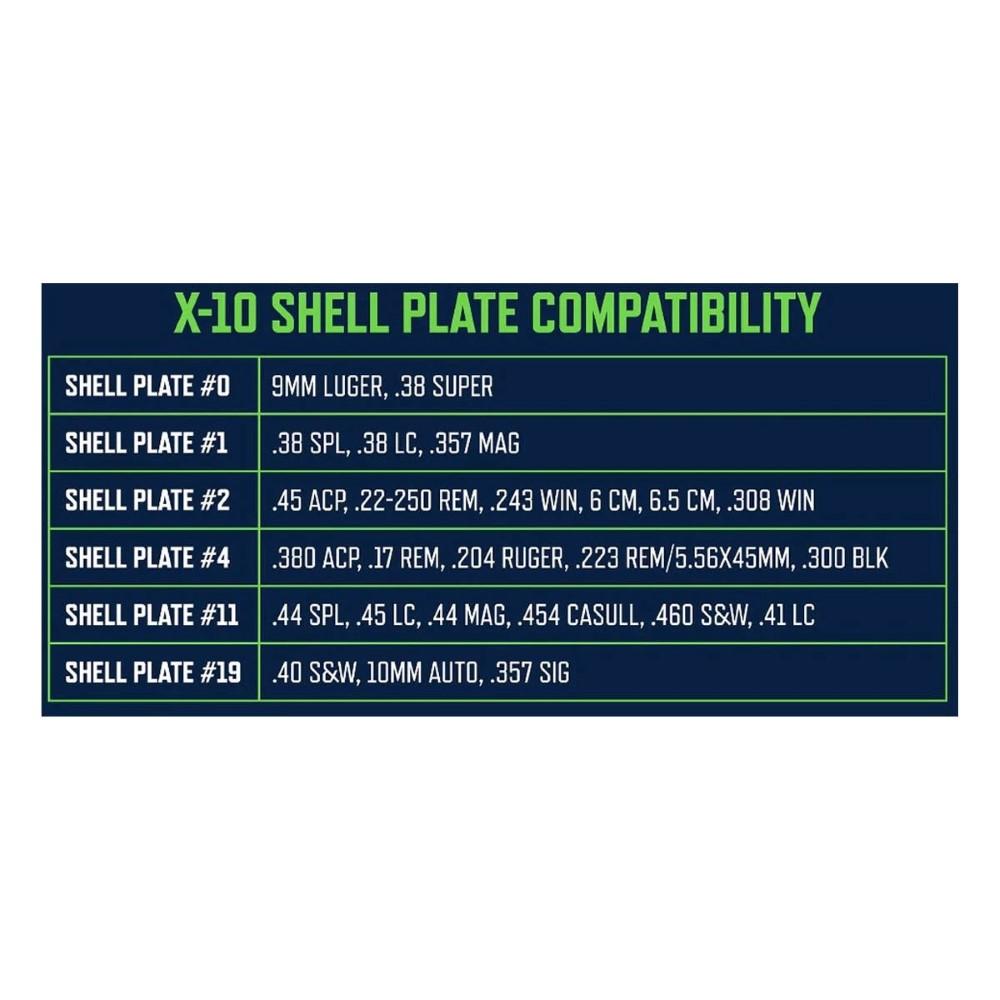

X-10 Shell Plate Compatibility:

• Shell Plate #0: 9mm Luger, .38 Super
• Shell Plate #1: .38 Spl, .38 Lc, .57 Mag
• Shell Plate #2: .45 Acp, .22-250 Rem, .243 Win, 6 Cm, 6.5 Cm, .308 Win
• Shell Plate #4: .380 Acp, .17 Rem, .204 Ruger, .223 Rem/5.56x45mm, .300 Bk
• Shell Plate #11: .44 Spl, .45 Lc, .44 Mag, .454 Casull, .460 S&W, .41 Lc
• Shell Plate #19: .40 S&W, 10mm Auto, .357 Sig

Recommended additional items (at a minimum, sold separately):

• Die set
• Shell Plates
• Powder scale
• Reloading Handbook
• Dial caliper
• Primer flip tray
• Case lube (for bottleneck cartridges)

Features

• 10 Station Press
• Shell plates for popular calibers (sold separately)
• Load cartridges up to .308 length
• Spring loaded case locator buttons
• In line primer pocket swaging
• Integrated Bearings for smooth operation
• Case activated powder measure
• Case Feeder Included
• UPC: 661120645313
• Part #: 1178469
