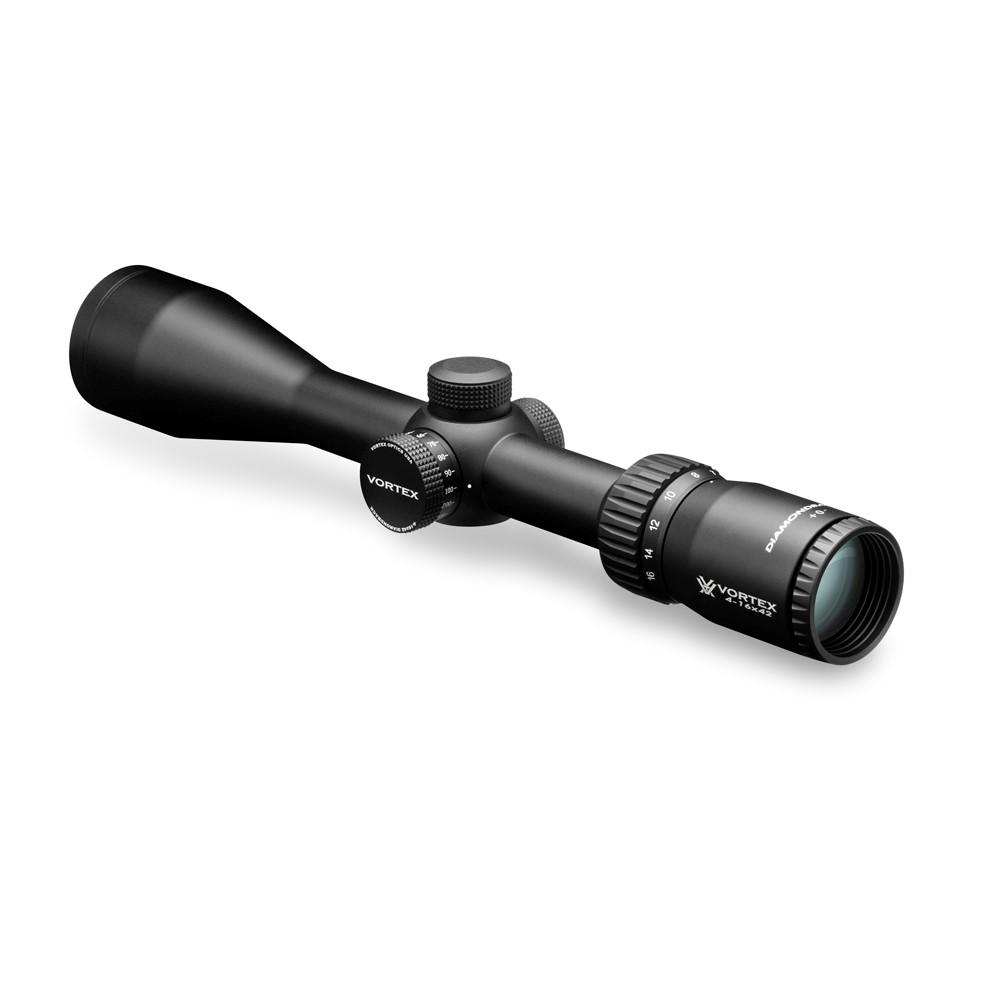

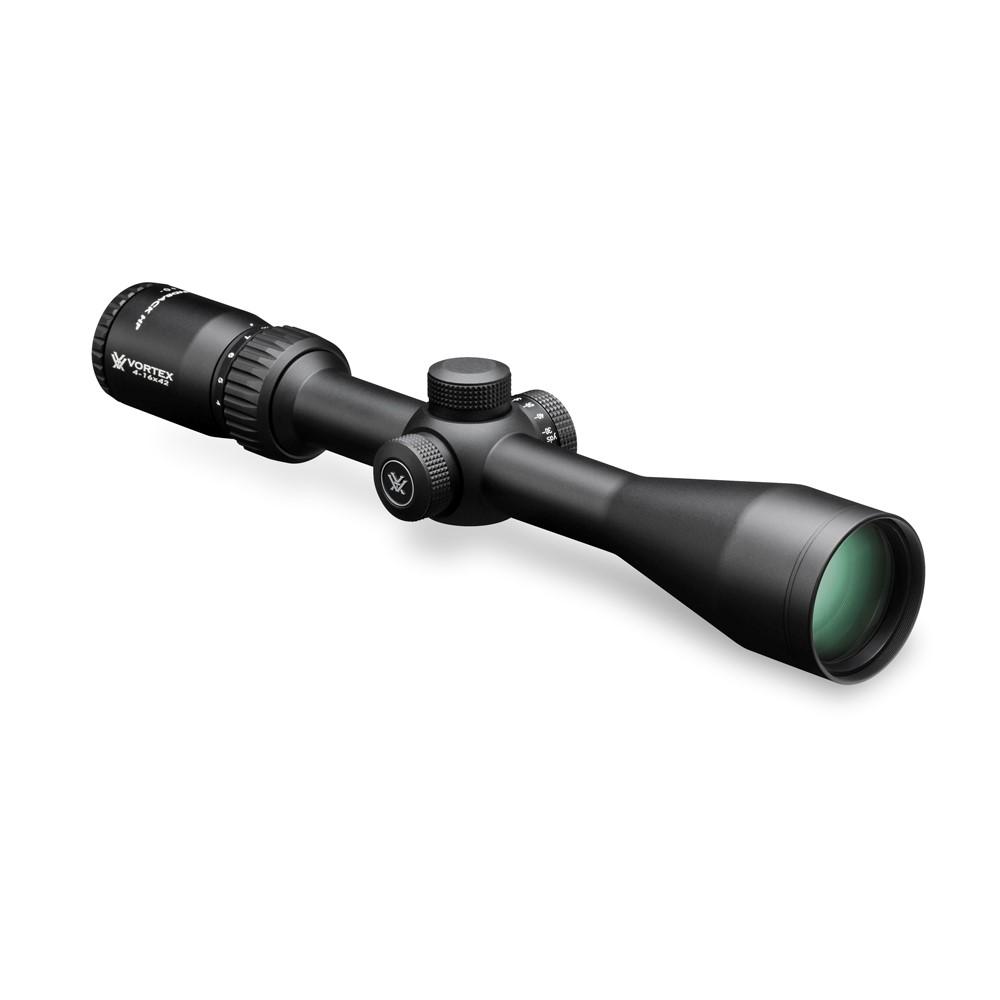

Vortex Diamondback HP Rifle Scope 4-16x42 Dead-Hold BDC Reticle

ID: DBK-10019   UPC: 875874005440   CLASSIFICATION: PAL REQUIRED

View More Items by: Vortex

$449.00



This product is out of stock.

Notify me when back in stock






What's in the Box 4-inch sunshade, Protective lens caps, Lens cloth

  • Product Information
  • Review

Product Information

The Diamondback HP (High Performance) riflescope offers a full-on array of features that discerning hunters are sure to appreciate. Optically, these scopes hit the proverbial mark. XD extra-low dispersion glass increases resolution and colour fidelity while XR fully multi-coated lenses maximize every minute of shooting light. The side focus/parallax adjustment is easily accessible while keeping a trim profile and allowing optimal mounting height. And, with a 4x zoom range, the Diamondback HP offers highly versatile magnification.

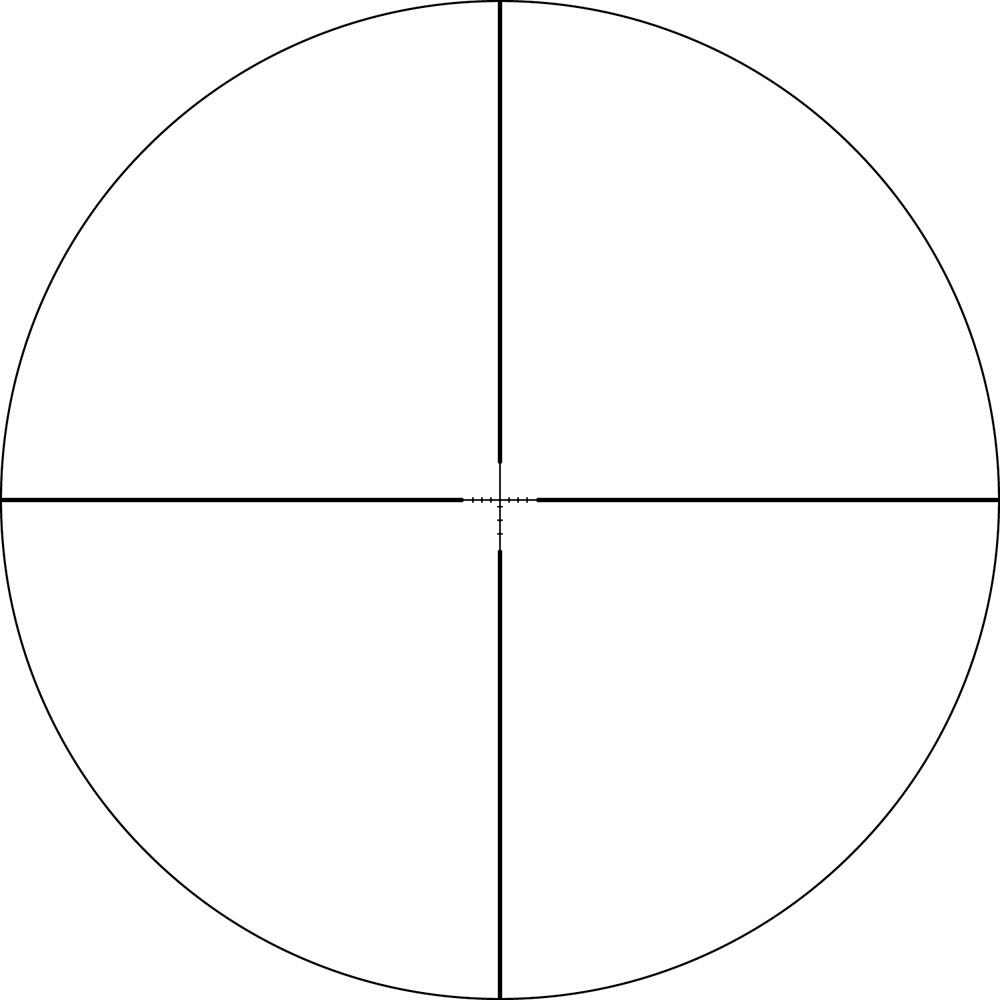

Dead-Hold BDC Reticle

SKU VT-DBK-10019
Magnification 4 – 16
Objective Lens Diameter 42 mm
Eye Relief 4.0 inches
Field of View 23.8–6.1 feet/100 yards
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 80 MOA
Max Windage Adjustment 80 MOA
Parallax Setting 30 yards to infinity
Length 12.5 inches
Weight 18 ounces



Optical Features

XD Lens Elements

Extra-low dispersion (XD) glass increases resolution and colour fidelity, resulting in crisp, sharp images.

XR Fully Multi-Coated

Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Second Focal Plane Reticle

Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features

Tube Size

1-inch diameter.

Single-Piece Tube

Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum

Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof

O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof

Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof

Rugged construction withstands recoil and impact.

Hard Anodized Finish

Highly durable low-glare matte finish helps camouflage the shooter's position.

Precision-Glide Erector System

Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Capped Reset Turrets

Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

Side Focus

Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features

Precision-Glide Erector System

Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features

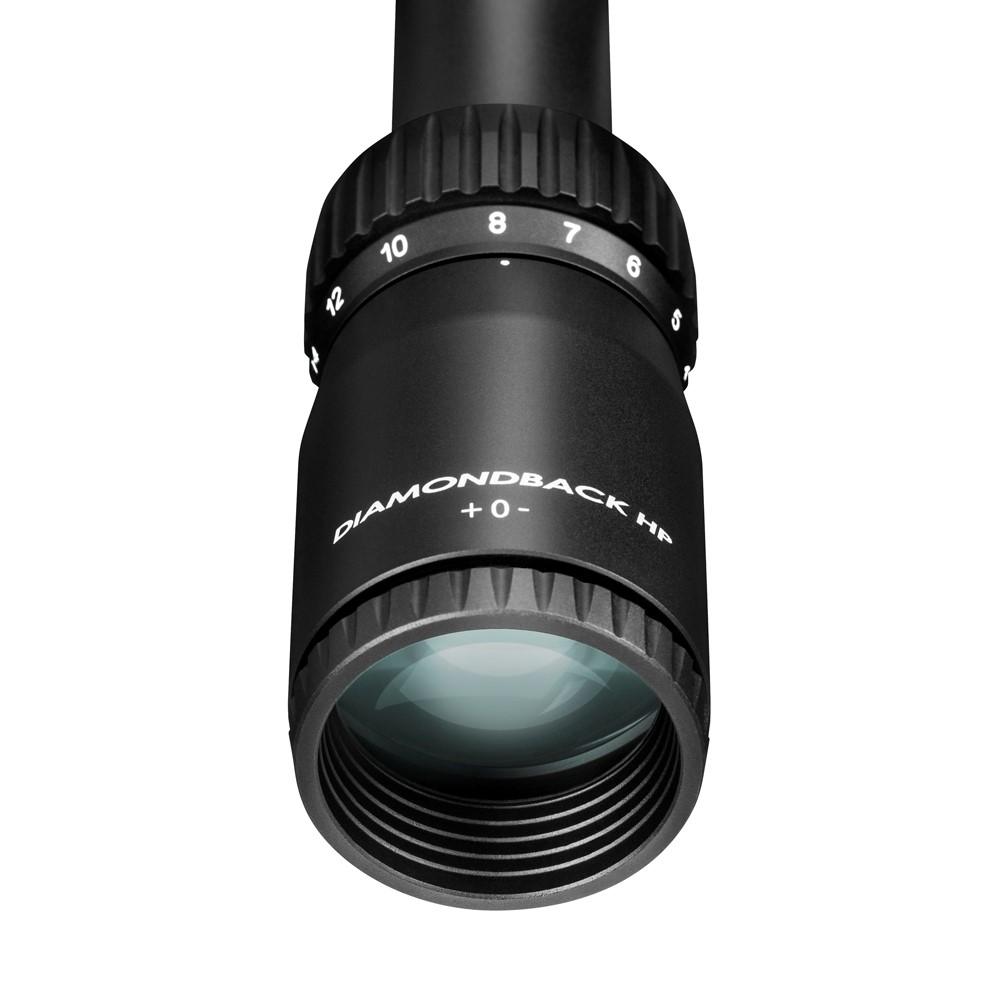

Fast Focus Eyepiece

Allows quick and easy reticle focusing.
