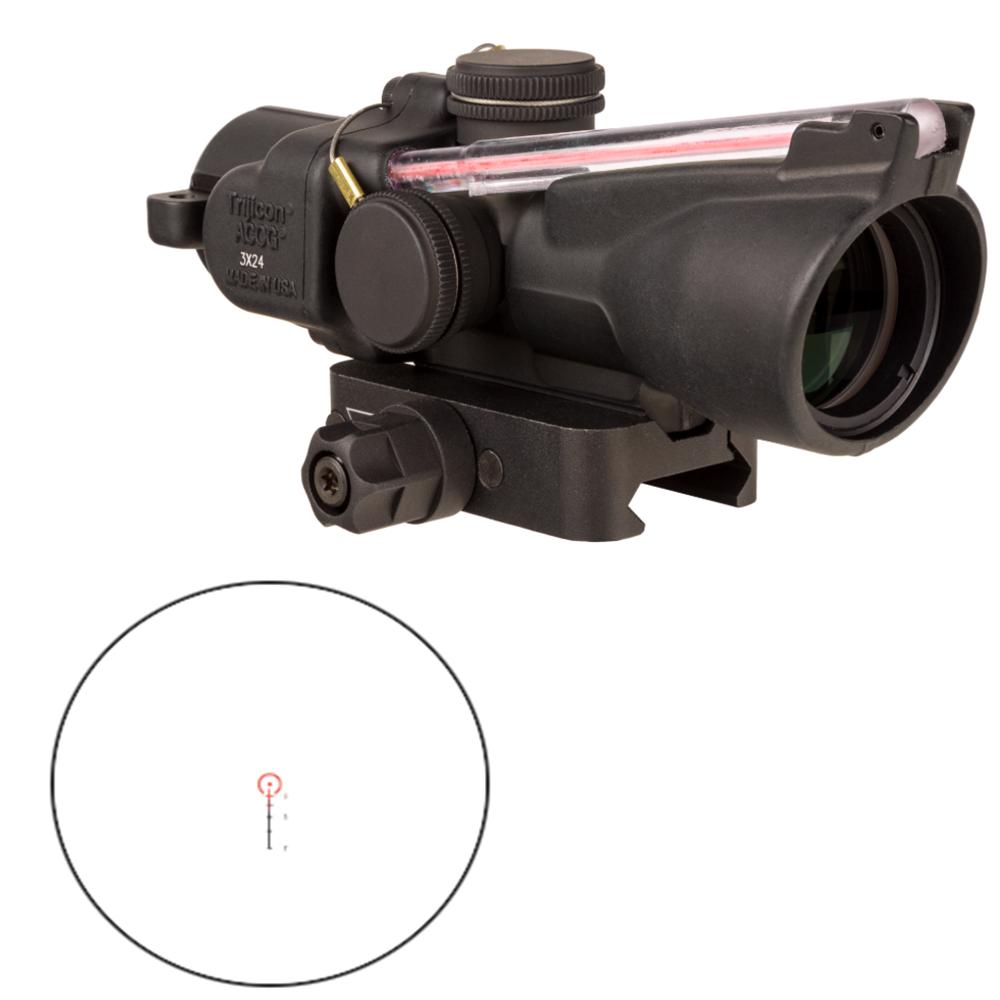

The Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG. Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR® (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.

The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system.  The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
- Matte black anodized finish
- Made in the USA

Torque Spec (to rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.

• Length x Width x Height: 4.9 in x 2.2 in x 2.3 in - (124.46mm x 55.88mm x 58.42mm)
• Weight: 7.9 oz. (223.96g)
• Magnification: 3x
• Objective Size: 24mm
• Reticle Pattern: Horseshoe Dot
• Day Reticle Color: Red
• Night Reticle Color: Red
• Bullet Drop Compensating (BDC): Yes
• Caliber: 7.62x39 / 123gr.
• Bindon Aiming Concept™ (BAC): Yes
• Illumination Source: Fiber Optics & Tritium
• Power Source :Fiber Optics & Tritium
• Adjustment :0.5 MOA per cick
• Eye Relief: 1.4 in. (35.56mm)
• Exit Pupil :.32 in. (8.13mm)
• Field of View (degrees) :5.6°
• Field of View (feet): 25.6 ft. @ 100 yds. (8.53m @ 100m)
• Mount: Trijicon Q-LOC™ Technology Mount
• Housing Material: Forged Aluminum
• Finish: Matte Black

INCLUDES

• Trijicon Q-LOC™ Technology Mount
•  Compact ACOG Scopecoat (TA62)
• LENSPEN (TA56)
•  Trijicon Logo Sticker (PR15)
•  ACOG Manual
• Warranty Card
