OVERVIEW

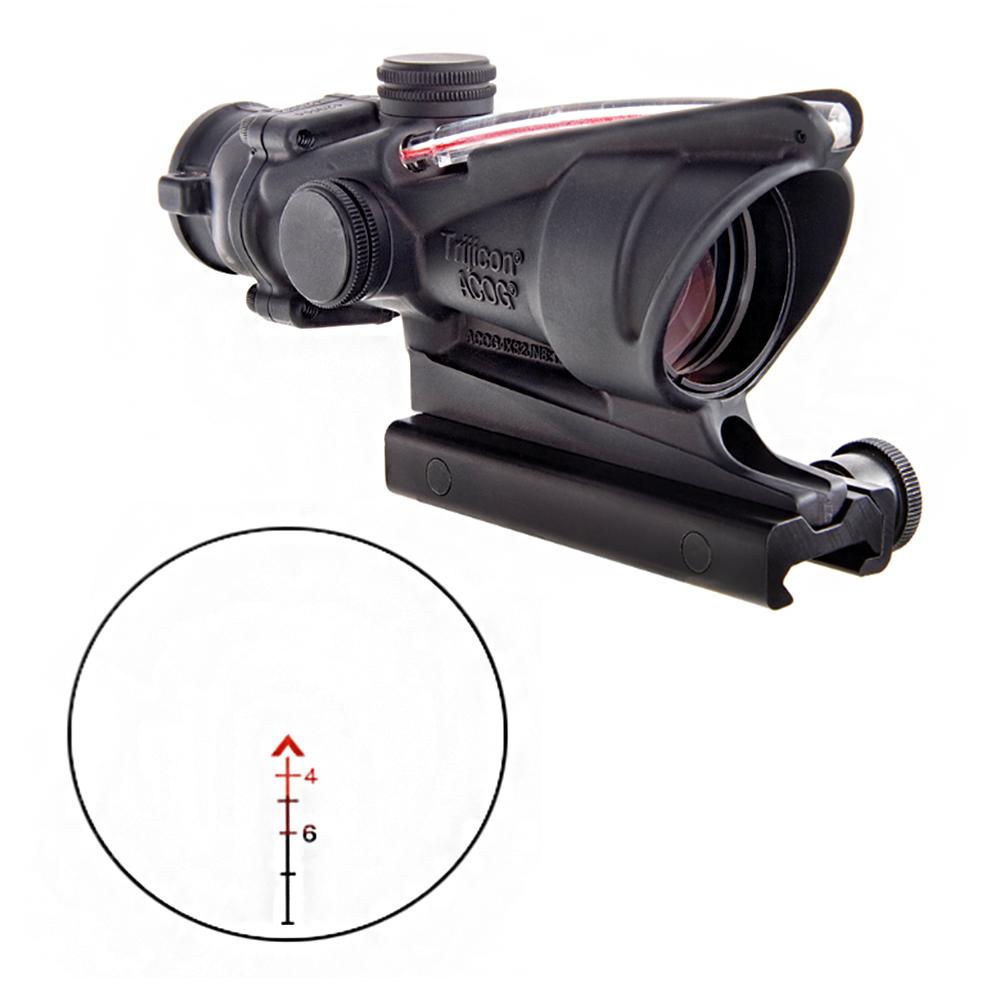

The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.

• Length x Width x Height: 5.98 in x 2 in x 2.3 in - (151.89mm x 50.8mm x 58.42mm)
• Weight: 14.9 oz. (422.41g)
• Magnification: 4x
• Objective Size: 32mm
• Reticle Pattern: Chevron
• Day Reticle Color: Red
• Night Reticle Color: Red
• Bullet Drop Compensating (BDC): Yes
• Caliber: .223 / 5.56
• Bindon Aiming Concept™ (BAC): Yes
• Illumination Source: Fiber Optics & Tritium
• Power Source: Fiber Optics & Tritium
• Eye Relief: 1.5 in. (38.1mm)
• Exit Pupil: 0.32 in. (8.13mm)
• Field of View (degrees): 7°
• Field of View (feet): 36.8 ft. @ 100 yds. (12.27m @ 100m)
• Mount: Flattop Thumbscrew Mount (TA51)
• Housing Material: Forged Aluminum
• Finish: Matte Black
• Submersion Depth: -66 ft. (-20m)

INCLUDES

• Thumbscrew Flattop Adapter (TA51)
• 4x32 Scopecoat (TA64)
• LENSPEN (TA56)
• Lanyard Assembly for Adjuster Caps (TA71E)
• Trijicon Logo Sticker (PR15)
• ACOG Manual
• Warranty Card
